Identities in LDAP/AD are organized differently from the identity
structure in Eucalyptus. So a transformation is required to map
LDAP/AD identities into Eucalyptus.

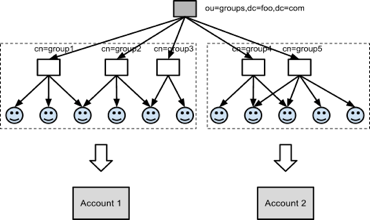

The following image shows a simple scheme of how the mapping works.
In this scheme, the user groups in LDAP tree are partitioned into
two sets. Each set is mapped into one separate account. Group 1, 2
and 3 are mapped to Account 1 and Group 4 and 5 are mapped to
Account 2. As the result, all users in Group 1, 2 and 3 will be in
Account 1, and all users in Group 4 and 5 will be in Account 2.
To summarize the mapping method:
- Pick user groups from LDAP/AD and combine them into different
accounts. There are two ways of doing this:
- Use something called accounting groups. Account groups
are essentially groups of groups. Accounting groups rely
on a key understanding of object class types in LDAP.
In short, accounting groups are mapped to STRUCTURAL
object classes in LDAP. For more information
about object class types, refer to the
LDAP Models RFC under the "2.4. Object Classes".
Each accounting group contains multiple user groups in LDAP/AD. Then each
accounting group maps to an account in Eucalyptus.
- Manually partition groups into accounts. Each group
partition maps to an account.
- Once the accounts are defined (by accounting groups or group
partitions), all the LDAP/AD user groups will be mapped into
Eucalyptus groups within specific accounts; and LDAP/AD users
will be mapped into Eucalyptus users. Using the options to
filter the groups and users to be imported into Eucalyptus
allows granular control.
- Groups are group object types in LDAP. The group object type
in LDAP/AD needs to have the attribute type determining membership
where the value is the Fully Distinguished Name (FDN) of the user(s).
Some examples of group object types for LDAP/AD are as follows:
Note that each group can be mapped into multiple accounts. But
understand that Eucalyptus accounts are separate name spaces. So for
groups and users that are mapped into different accounts, their
information (name, attributes, etc) will be duplicated in different
accounts. And duplicated users will have separate credentials in
different accounts. For example, Group 1 may map to both Account 1
and Account 2. Say user A belongs to Group 1. Then Account 1 will
have user A and Account 2 will also have user A. User A in Account 1
and user A in Account 2 will have different credentials, policies,
etc., but the same user information.
Note: Currently, there is not a way to map individual users into an
account. The mapping unit is LDAP user group. What maps where groups
and users end up regarding accounts DEPENDS upon the accounting-groups
or groups-partition definitions.
